PS2 Slim internal HDMI kit: a digital output instead of the composite cable
Connected by composite to a modern TV, a PS2 Slim gives a blurry, smeary picture. This internal HDMI kit is soldered onto the motherboard and takes the digital signal to output it in 480p or 1080p. It is aimed at experienced modders, able to micro-solder, who know the revision of their motherboard.
What it does
- Digital HDMI output: the signal is taken directly from the motherboard, without going through analogue conversion.
- 480p or 1080p: a choice of two output resolutions, depending on the TV.
- On-screen menu: picture settings and three video modes (soft, standard and vivid).
What it doesn't do
- It does not make games more detailed: it carries and enlarges the original picture, without adding resolution.
- It only suits the listed motherboards: a wrong reference makes the kit unusable, so check yours before ordering.
- It is not suitable for the full-size PS2, nor for SCPH-9000x PS2 Slim consoles.
- It does not repair a tired drive or a failing power supply.
- Installation requires micro-soldering: this is not a beginner's kit.

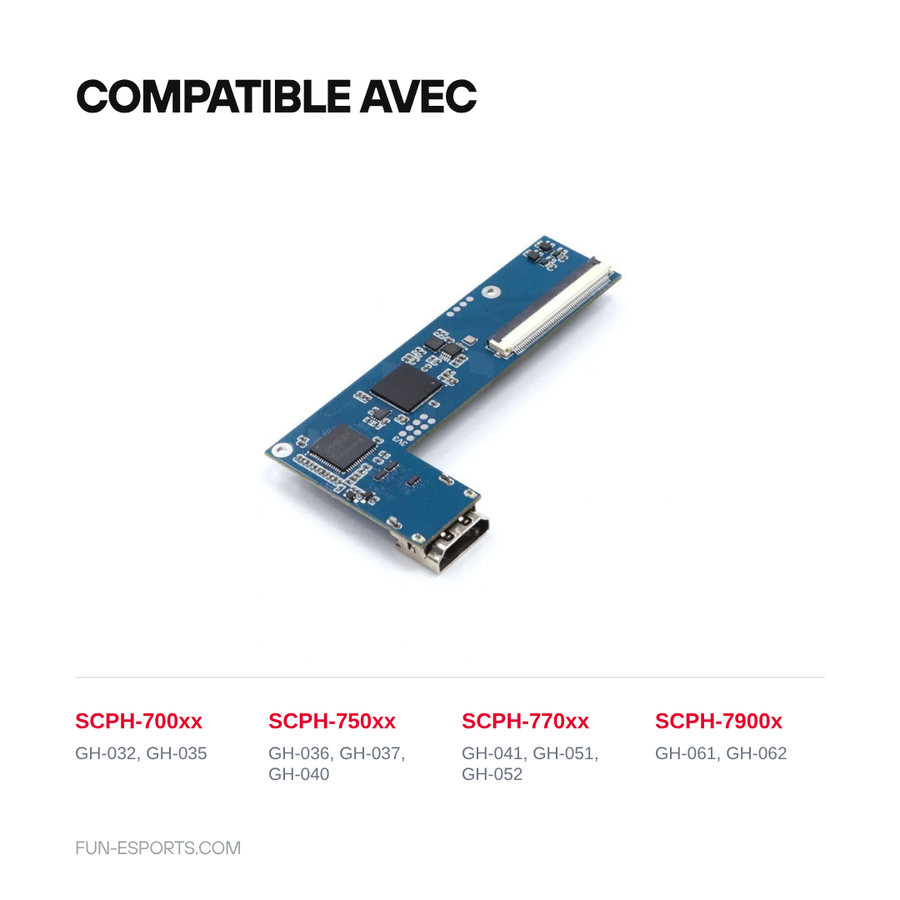

Compatibility
PS2 Slim with motherboard GH-032 or GH-035 (SCPH-700xx), GH-036, GH-037 or GH-040 (SCPH-750xx), GH-041, GH-051 or GH-052 (SCPH-770xx), GH-061 or GH-062 (SCPH-7900x). The revision is engraved on the motherboard: choose the matching variant. Not compatible with the full-size PS2 or SCPH-9000x PS2 Slim consoles.
Skill level required
Expert level. Complete disassembly of the console down to the motherboard, micro-soldering of the ribbon cable onto very fine points, fixing the HDMI board and making an opening for the HDMI port in the shell. Have a fine-tip soldering station, flux, a magnifier or microscope, and a precision cutting tool. If in doubt, have a workshop do the installation.

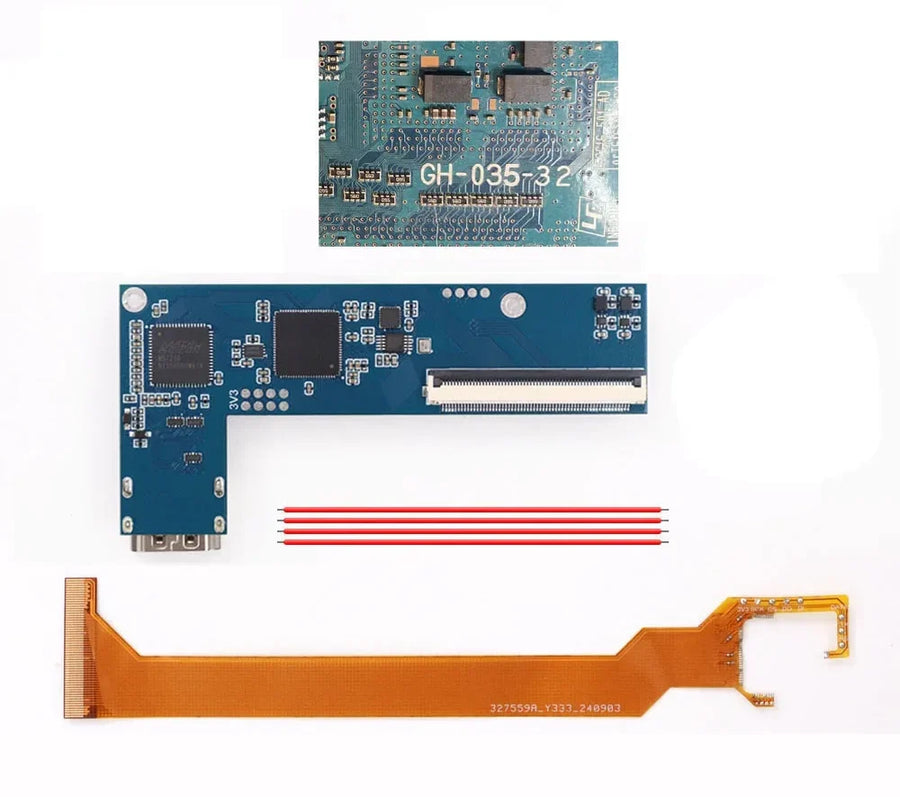

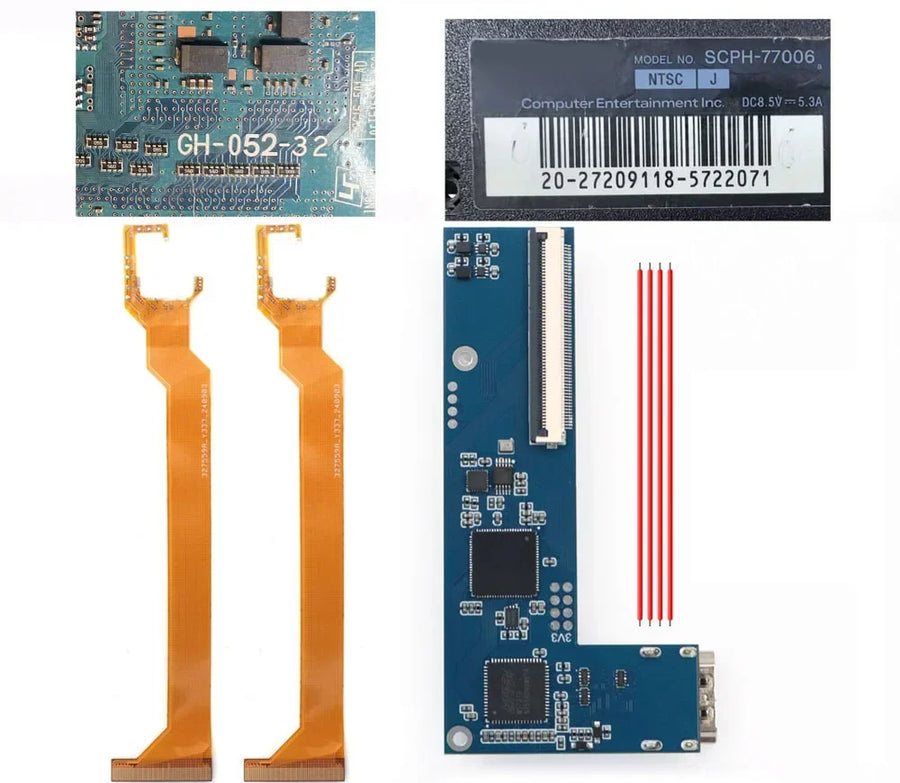

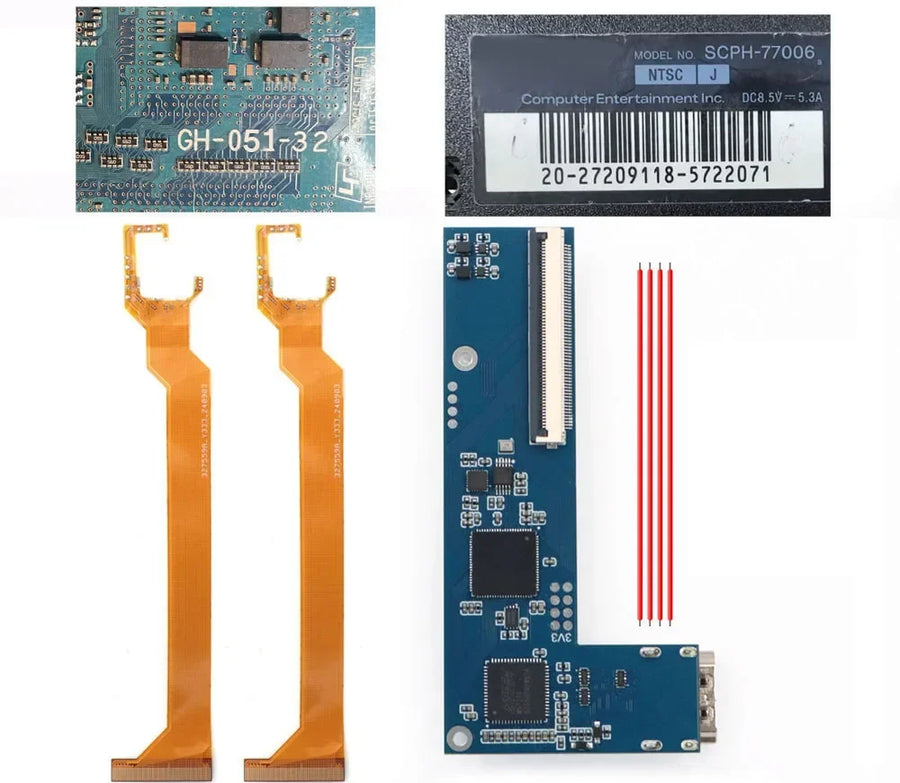

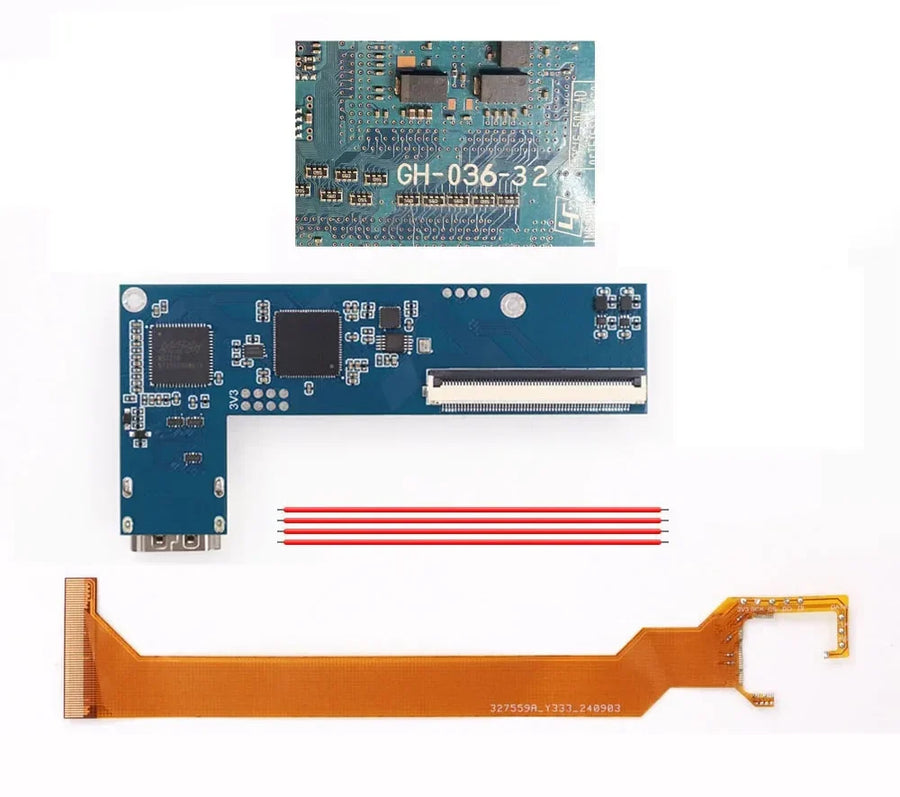

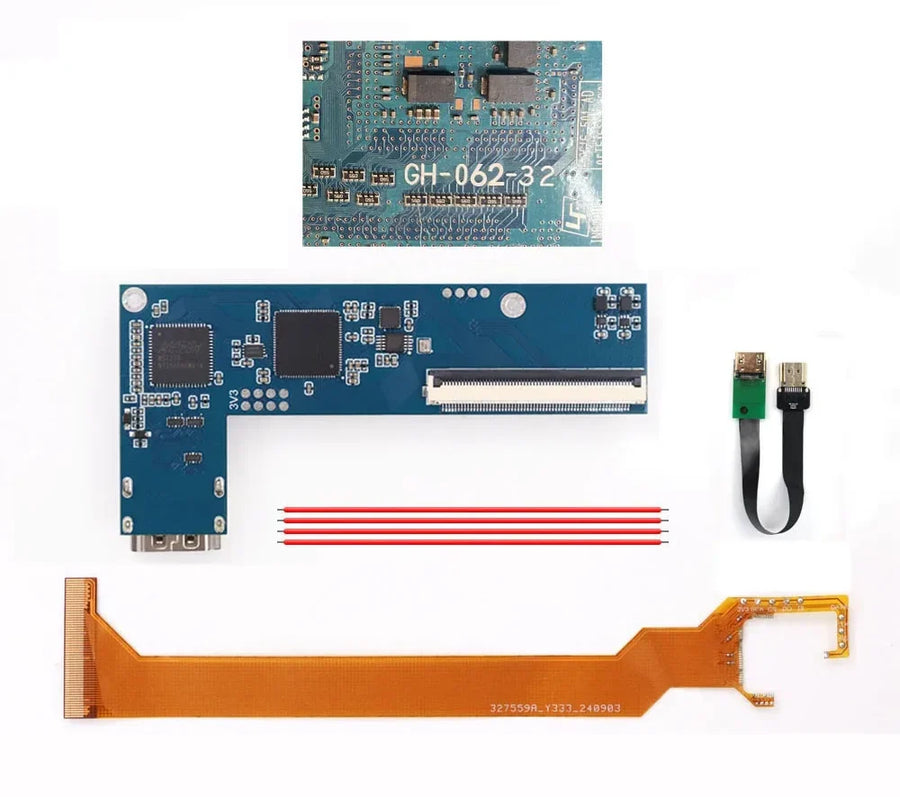

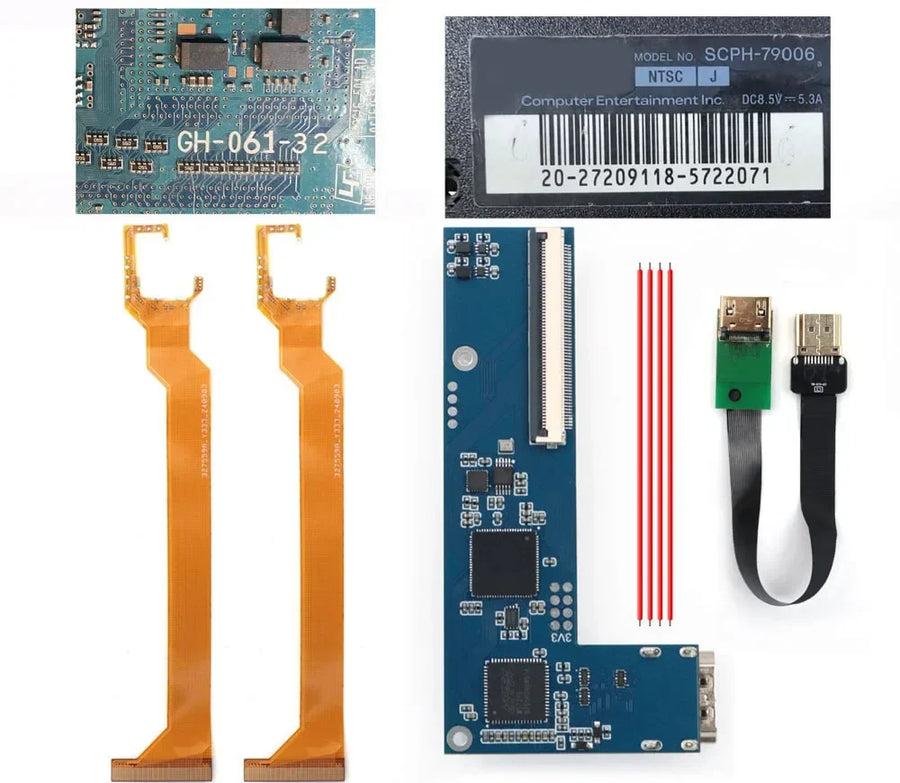

In the box
- 1 HDMI board
- 1 or 2 ribbon cables depending on the chosen variant
The console is not included.
Delivery in 10 to 18 days · dispatched within 3 to 5 days · 2-year legal guarantee · 14-day returns.
PS2 Slim internal HDMI kit — 480p and 1080p, GH-032 to GH-062 boards
Solder-in HDMI kit for PS2 Slim, 480p or 1080p digital output, one variant per motherboard.
En stock
📦Dispatched within 3 to 5 business days · Delivery in 10 to 18 business days · 2-year legal guarantee · 14-day returns.
ℹÀ partir de 150 €, la livraison s’effectue en Point Relais.
- 🇫🇷SAV français
réponse sous 1 jour ouvré - 🛡Garantie légale
2 ans - ↩14 jours
pour changer d’avis - 🔒Paiement sécurisé
CB · PayPal · Klarna
The job: soldering in a digital output

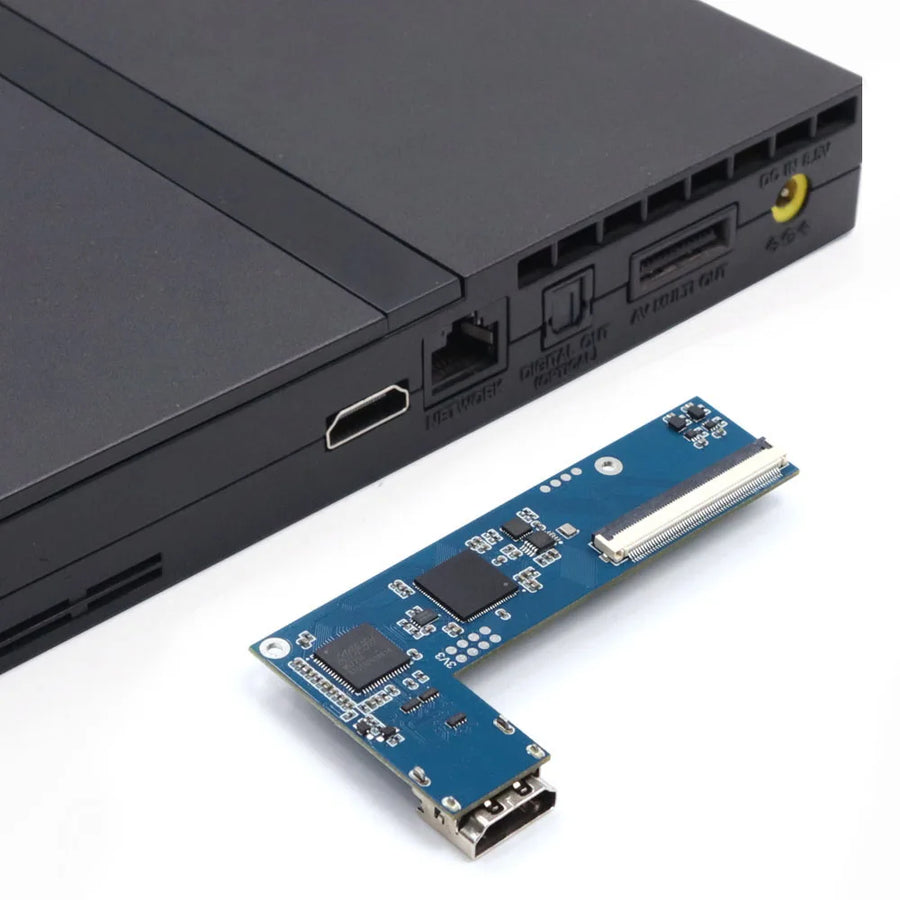

You open the PS2 Slim down to the motherboard, solder the ribbon cable onto the designated points, fix the HDMI board and make an opening for the port. It is micro-soldering work: once closed again, the console outputs a sharp picture to a modern TV, without a composite cable.
The part: one variant per motherboard

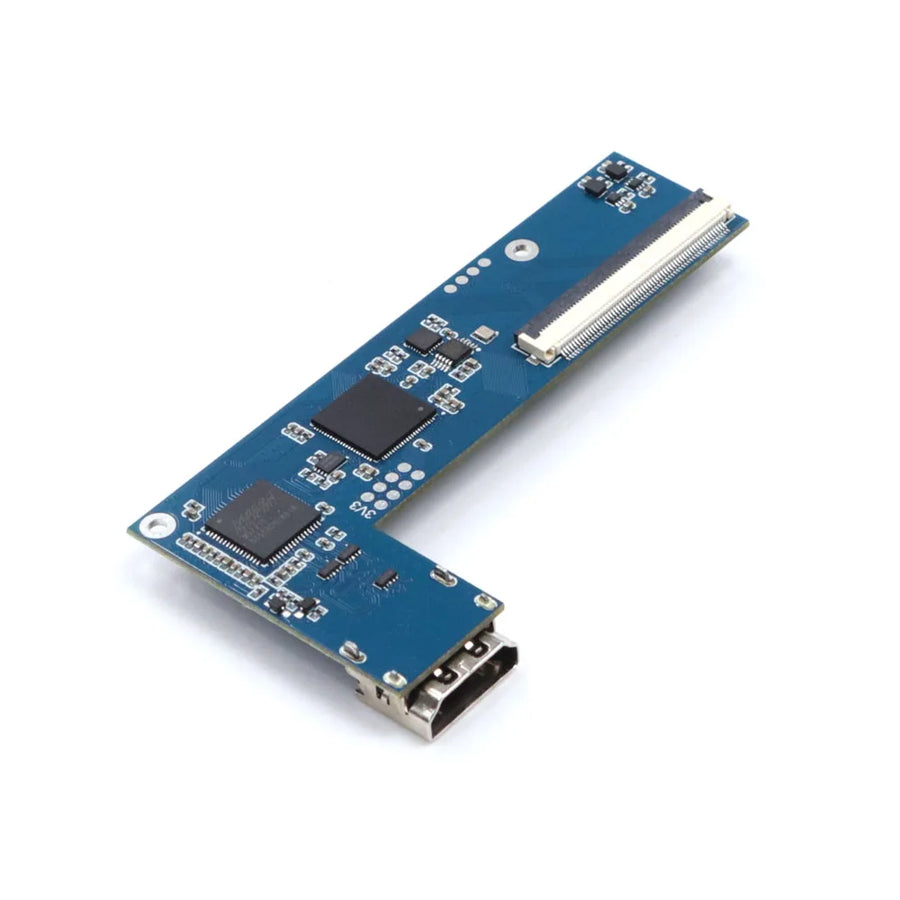

Each PS2 Slim revision has its own layout: the kit therefore exists for GH-032 to GH-062 boards. It takes the digital signal and outputs it in 480p or 1080p, with an on-screen menu and three video modes. Everything happens inside the console: no external box.
Support: check before ordering
Open the console and note the GH-0xx revision engraved on the motherboard before choosing the variant. Unsure? Write to us: our customer service replies within 1 business day, and the 2-year legal guarantee applies, with 14-day returns.
What this accessory brings
Verified manufacturer specifications · vérifié le
Ce qu’il fait bien
- Digital HDMI output taken from the motherboard
- 480p or 1080p to choose from
- On-screen menu and three video modes
- One variant per motherboard revision
Ce qu’il ne fait pas
- Micro-soldering required
- Motherboard revision to check before ordering
- Not compatible with the full-size PS2 or SCPH-9000x
- Does not add detail to games
Voir toute la fiche technique+
Matière et format
- Type d’accessoire
- Internal HDMI kit
Compatible avec
- PS2 Slim SCPH-700xx (GH-032, GH-035)
- PS2 Slim SCPH-750xx (GH-036, GH-037, GH-040)
- PS2 Slim SCPH-770xx (GH-041, GH-051, GH-052)
- PS2 Slim SCPH-7900x (GH-061, GH-062)
Dans la boîte
- 1 HDMI board
- 1 or 2 ribbon cables depending on the variant
Frequently Asked Questions
🔧 Do I need to solder to install this kit?
Yes, micro-soldering on the motherboard. A fine-tip station, flux and a magnifier are essential.
🎮 Which consoles is it compatible with?
PS2 Slim consoles with motherboard GH-032, 035, 036, 037, 040, 041, 051, 052, 061 or 062. Not the full-size PS2 or the SCPH-9000x.
🔍 How do I find out my motherboard?
The GH-0xx revision is printed on the motherboard, visible once the console is open. The SCPH number under the console gives a first indication.
✂️ Do I need to cut the shell?
You need to make an opening for the HDMI port. A precision cutting tool is required.
📦 What is in the box?
The HDMI board and one or two ribbon cables depending on the chosen variant.
📺 Which output resolutions?
480p or 1080p, with three video modes adjustable from the on-screen menu.
🚚 What are the delivery times?
Delivery in 10 to 18 days, dispatched within 3 to 5 days.
🛡️ Which guarantee applies?
2-year legal guarantee of conformity. 14-day returns. Customer service replies within 1 business day.
