Full description
GuliKit RG01 joysticks for ROG Ally X: putting an end to drift
A drifting joystick makes the camera or the character move on its own. On the ROG Ally X, this GuliKit module replaces both original sticks with Hall effect joysticks: the position is read by a magnetic sensor, with no carbon track that wears out through friction. Installation is done without soldering, in the original format and with the original connector.
What it does
- Hall effect magnetic reading: no rubbing contact in the sensor, so none of the wear behind classic drift.
- Direct replacement: same dimensions and same connectors as the original modules, no soldering.
- A complete pair: left and right joysticks replaced in a single job.
What it doesn't do
- It is not suitable for the original ROG Ally (2023), nor for the 2025 ROG Xbox Ally models.
- It does not remove the need for calibration: without calibration in Armoury Crate, the centre may be misread.
- Without a dead zone, it is normal for the stick not to return exactly to the zero point every time it is released.
- It does not fix a trigger, button or software problem.
Compatibility
ROG Ally X only. Not compatible with the original ROG Ally (2023) or with the ROG Xbox Ally and ROG Xbox Ally X released in 2025, which have their own modules. Opening the console may end the manufacturer's commercial warranty.
Skill level required
Intermediate level, no soldering. You need to remove the back shell, disconnect the battery, unplug and unscrew each original module, then install the new ones. Before closing, run the joystick calibration in Armoury Crate (Settings, then Calibration) and follow the on-screen instructions. Have a precision Phillips screwdriver and a plastic opening tool ready.
In the box

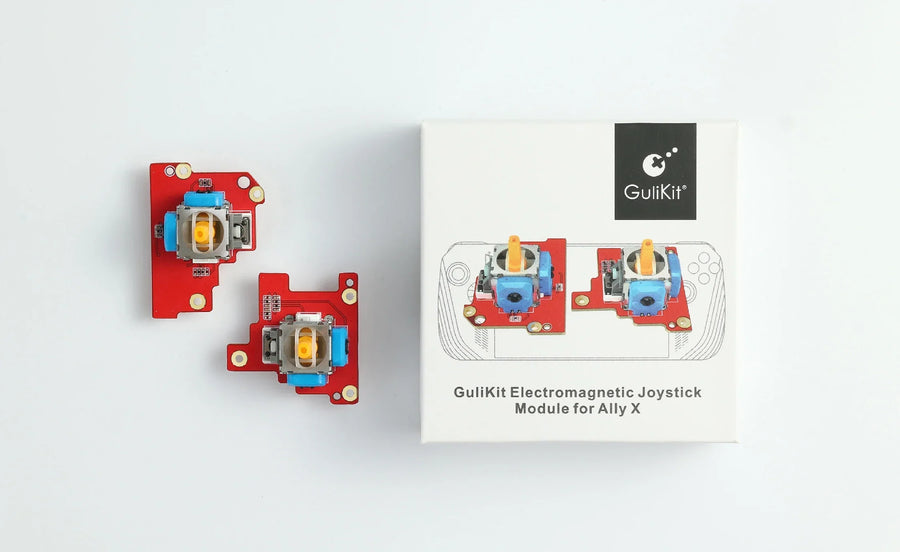

- 1 pair of GuliKit RG01 joystick modules (left and right).
Delivery in 10 to 18 days · dispatched within 3 to 5 days · 2-year legal guarantee · 14-day returns.
ROG Ally X GuliKit RG01 joysticks — Hall effect, anti-drift
Pair of Hall effect joysticks for ROG Ally X, installed without soldering to eliminate drift.
In stock
📦Dispatched within 3 to 5 business days · Delivery in 10 to 18 business days · 2-year legal guarantee · 14-day returns.
- 🇫🇷French customer service
reply within 1 business day - 🛡Legal warranty
2 years - ↩14 days
to change your mind - 🔒Secure payment
Card · PayPal · Klarna
The job: restoring the ROG Ally X's precision
When the character walks on its own or the camera slides, the joystick is drifting. You open the back of the ROG Ally X, disconnect the battery, replace both modules and calibrate before closing. No soldering: it is a screwdriver job, within reach of a careful hobbyist.

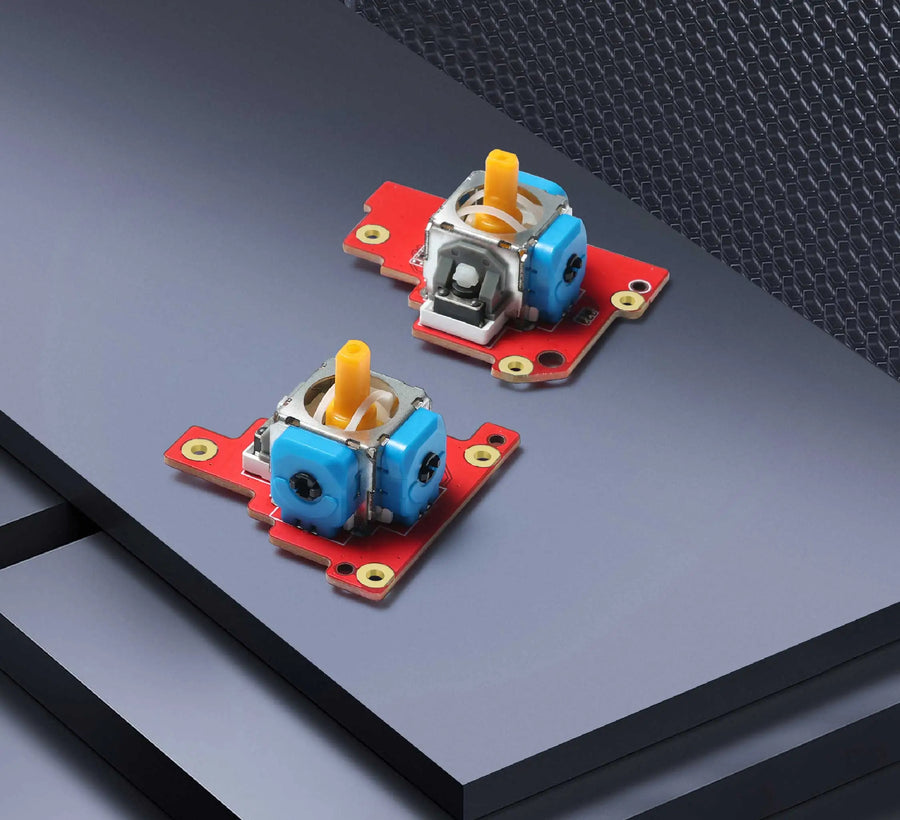

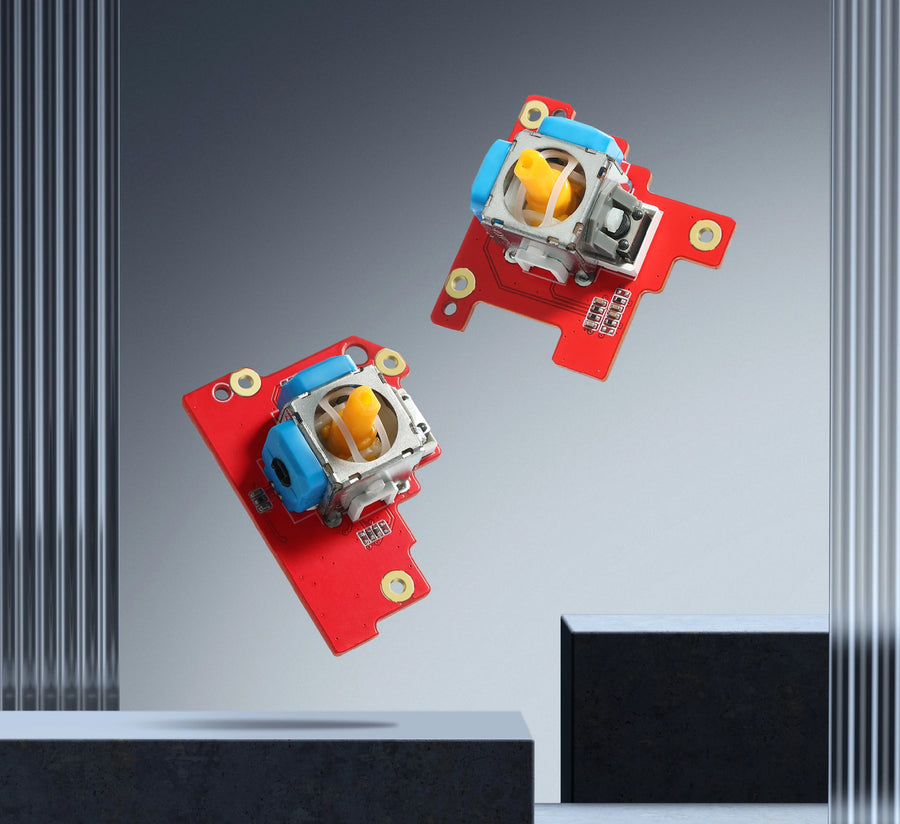

The part: a GuliKit Hall effect module
GuliKit has made a name for itself with its magnetic joysticks for handheld consoles and controllers. The RG01 reads the stick position via the Hall effect, with no carbon track to wear out, and uses the dimensions and connectors of the ROG Ally X's original modules. It does not fit the 2023 ROG Ally.
Before opening: calibration and model
Check that your console is indeed a ROG Ally X. Have a precision Phillips screwdriver and a plastic opening tool ready, and keep Armoury Crate at hand: calibration is done before screwing the back on again. A question about installation? Our customer service replies within 1 business day.
What this accessory brings
Verified manufacturer specifications · verified on
What it does well
- Hall effect sensor, no carbon track to wear out
- Direct replacement in the original format
- No-solder installation
- Complete left and right pair
What it doesn’t do
- ROG Ally X only, not the original ROG Ally
- Calibration in Armoury Crate required
- Imperfect return to centre possible without a dead zone
See full specifications+
Material and size
- Accessory type
- Replacement joystick
Compatible with
- ROG Ally X
In the box
- 1 pair of GuliKit RG01 joystick modules (left and right)
Information and safety
Instructions for use and legal information about the product
Spare parts and modding: installation and safety
- Installation is carried out by the user. It requires disassembly or electronics skills and may void the original console manufacturer's warranty.
- Switch the device off and remove batteries before opening it.
- Components sensitive to static electricity: touch a grounded metal surface or wear an antistatic wrist strap before handling them.
- Screens and glass: if broken, the glass can cut.
- Respect the voltage stated on the product page: the wrong power supply destroys the module.
- Contains small parts: not suitable for children under 3.
Origin, responsible person and contact
- Product and packaging as supplied by the manufacturer: markings may be in Chinese or English. The product's characteristics are described on this page.
- Use this product only for the purpose described on this page and follow the instructions below.
- Person responsible for placing this product on the EU market: JMR-Service (Fun-Esports). See our Terms of Sale for full contact details.
- A safety problem (overheating, burning smell, broken part)? Stop using the product and write to us at contact@fun-esports.com.
- Warranty, returns and withdrawal: see our Warranty and returns page.
Frequently Asked Questions
🔧 Do I need to solder to install these joysticks?
No. The modules use the original format and connector: you unplug the old one, plug in the new one and screw it back in.
🎮 Is it compatible with my ROG Ally?
Only with the ROG Ally X. The original ROG Ally (2023) and the 2025 ROG Xbox Ally models use other modules.
🧲 What does the Hall effect bring?
The stick position is measured by a magnetic sensor, with no carbon track rubbed by a wiper. It is the wear of this track that causes drift in classic joysticks.
🎯 Do I need to calibrate after installation?
Yes. Before closing the console, open Armoury Crate, Calibration section, select each joystick and follow the instructions. Without a dead zone, a slight deviation when returning to centre remains normal.
📦 What is in the box?
A pair of GuliKit RG01 joystick modules: one left, one right. No tools.
🧰 What tools do I need?
A precision Phillips screwdriver and a plastic opening tool for the back shell. Fine tweezers help with handling the ribbon cables.
🚚 What are the delivery times?
Delivery in 10 to 18 days, dispatched within 3 to 5 days.
🛡️ What guarantee applies?
2-year legal guarantee of conformity. 14-day returns. Our customer service replies within 1 business day.
