Full description
Dreamcast cooling kit: a quieter console
The Dreamcast's original fan is known for being noisy, and it wears out over the years. This TicKnot kit supplies an injection-moulded bracket that lets you install a quieter brushless 5 V fan in its place. Three versions: bracket and fan, bracket only, or fan only.
What it does
- Dedicated bracket: holds a 5 V fan in the position of the original fan.
- Moulded part: made by injection moulding rather than 3D printing.
- Three versions: complete kit, bracket only if you already have the fan, or fan only.
What it doesn't do
- It does not fix overheating caused by dried-out thermal paste or a clogged heatsink: clean them at the same time.
- It does not reduce the noise of the disc drive, only that of the cooling.
- A 12 V fan is not suitable: you need a 5 V model.
- The “bracket only” version does not contain a fan, and the “fan only” version does not contain a bracket.
Compatibility
Dreamcast, all regions. The very first motherboards (VA0 revision, recognisable by their fan mounted on a metal heatsink) have different cooling and are generally not covered by this type of bracket: open your console to check before ordering.
Skill level required

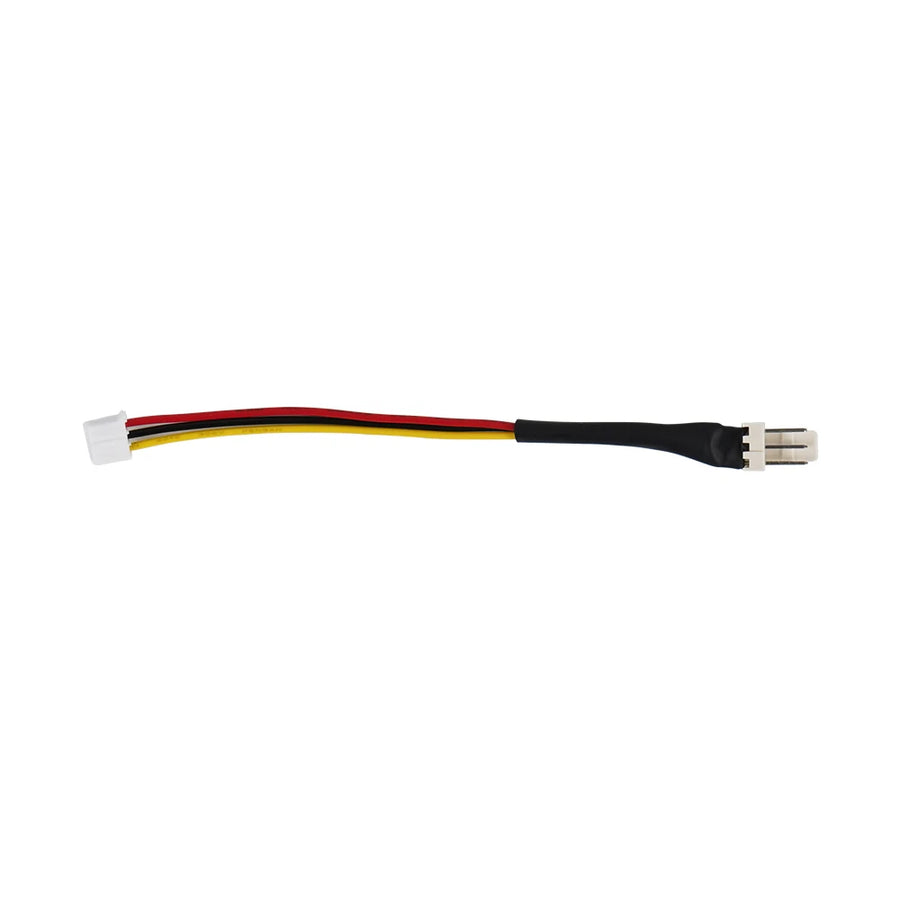

Intermediate level. You need to open the Dreamcast with a Phillips screwdriver, unplug and remove the original fan, install the bracket and the new fan, then plug it in. Depending on your fan's connector, a cable adapter may be needed: check it before starting.

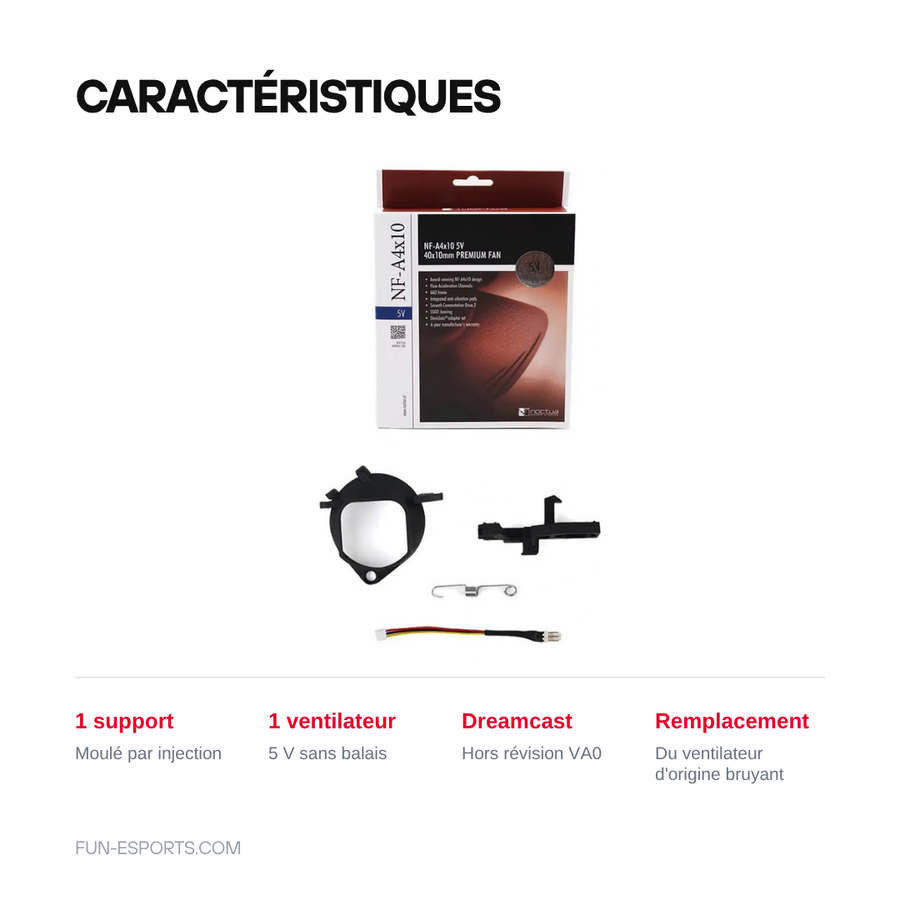

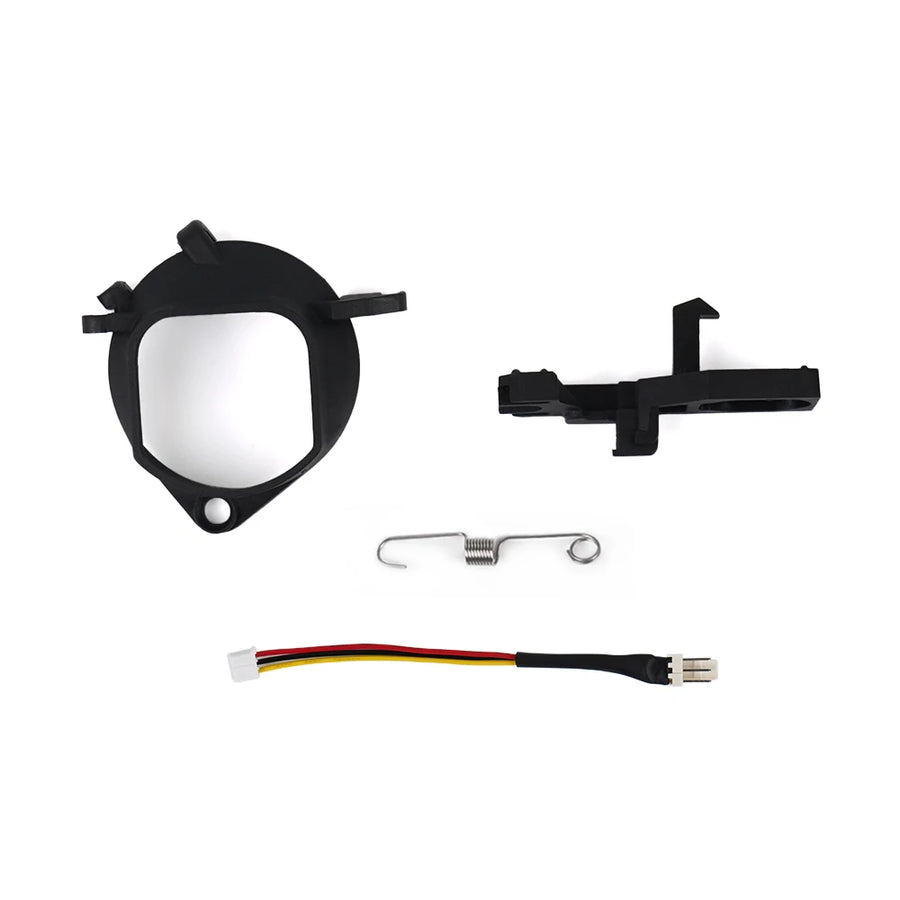

In the box
- Complete kit version: 1 moulded bracket and 1 5 V fan
- Bracket only version: 1 moulded bracket
- Fan only version: 1 5 V fan
Delivery in 10 to 18 days · dispatched within 3 to 5 days · 2-year legal guarantee · 14-day returns.
Dreamcast cooling kit — moulded bracket for a quiet 5 V fan
A moulded bracket to install a quiet 5 V fan in a Dreamcast, with or without the fan.
In stock
📦Dispatched within 3 to 5 business days · Delivery in 10 to 18 business days · 2-year legal guarantee · 14-day returns.
- 🇫🇷French customer service
reply within 1 business day - 🛡Legal warranty
2 years - ↩14 days
to change your mind - 🔒Secure payment
Card · PayPal · Klarna
The job: quietening the Dreamcast

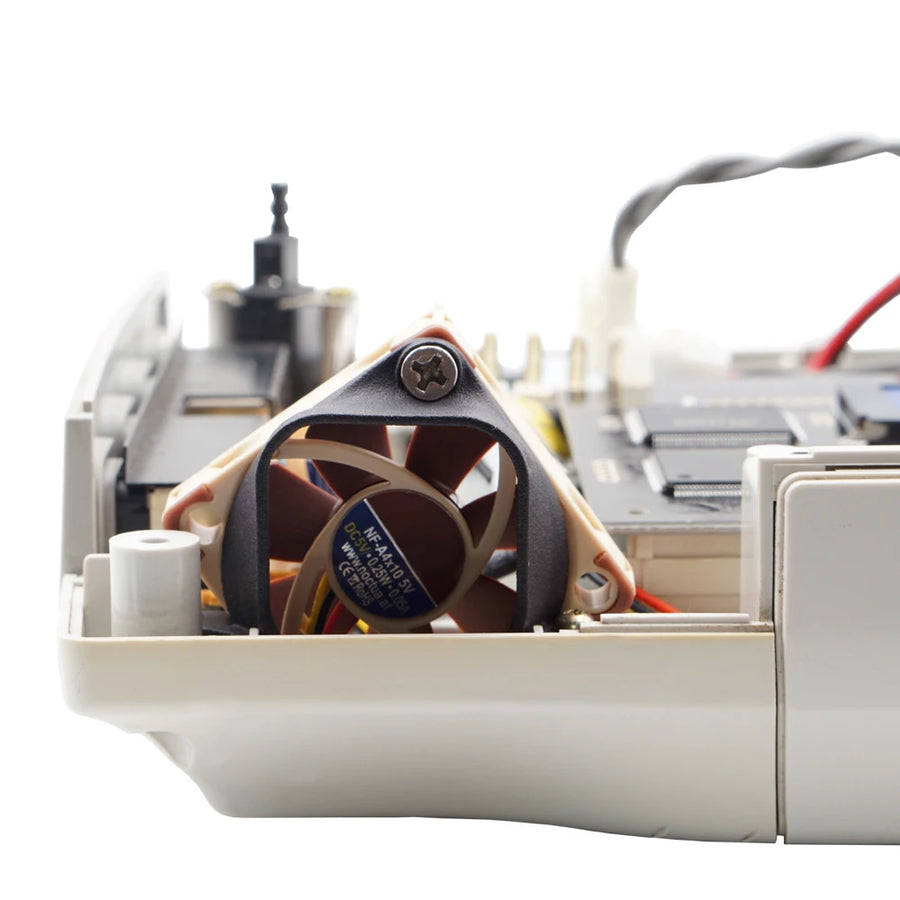

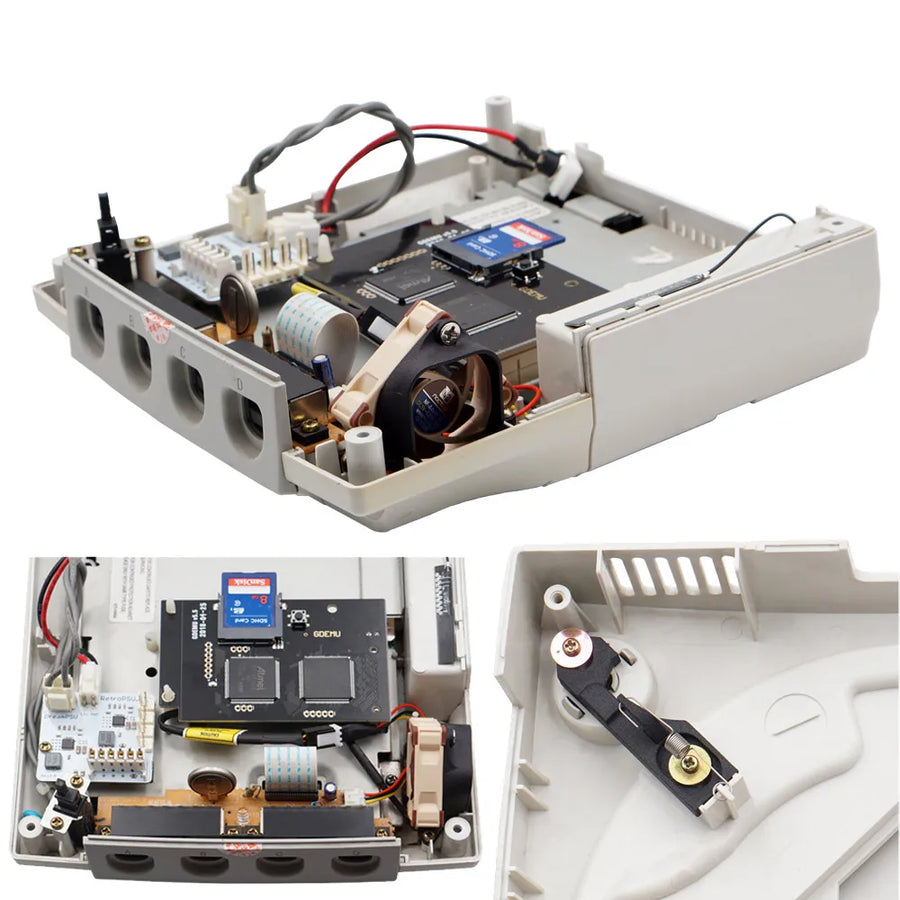

A running Dreamcast can be heard from the sofa: its small fan spins fast and wears out with age. You open the console, remove the original fan, install the moulded bracket and a quieter 5 V fan, plug it back in and close it up. The console keeps its cooling, without the whine.

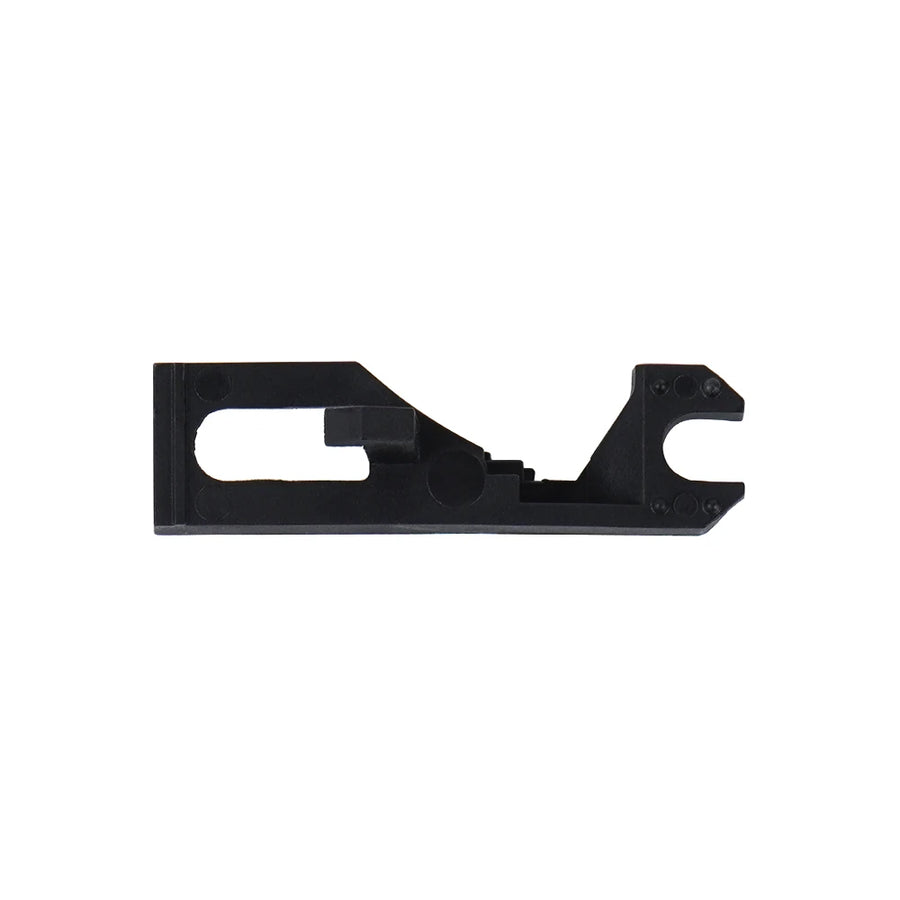

The part: a moulded bracket, not a printed one

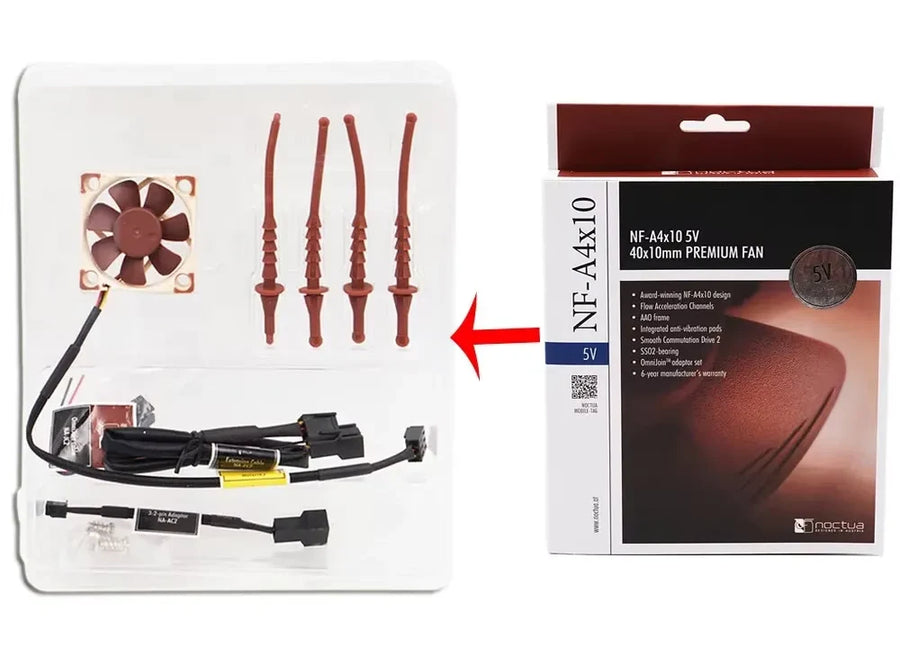

Many brackets of this type are 3D-printed. TicKnot's is injection-moulded, for a part that is consistent from one unit to the next. It is designed for a brushless 5 V fan, supplied in the complete kit or sold on its own if you already have the bracket.
Support: checking your revision
Before ordering, open your Dreamcast: if the fan is mounted on a metal heatsink, it is probably a VA0 board, generally not covered. Take advantage of the opening to remove the dust. If in doubt, send us a photo: our customer service replies within 1 business day.
What this accessory brings
Verified manufacturer specifications · verified on
What it does well
- Replaces the noisy original fan
- Injection-moulded bracket
- Brushless 5 V fan
- Three versions to choose from
What it doesn’t do
- VA0 revision generally not covered
- 12 V fan unsuitable
- Cable adapter sometimes needed
- Does not reduce disc drive noise
See full specifications+
Material and size
- Accessory type
- Cooling
Compatible with
- Dreamcast (except VA0 revision)
In the box
- Complete kit: 1 moulded bracket and 1 5 V fan
- Bracket only: 1 moulded bracket
- Fan only: 1 5 V fan
Information and safety
Instructions for use and legal information about the product
Spare parts and modding: installation and safety
- Installation is carried out by the user. It requires disassembly or electronics skills and may void the original console manufacturer's warranty.
- Switch the device off and remove batteries before opening it.
- Components sensitive to static electricity: touch a grounded metal surface or wear an antistatic wrist strap before handling them.
- Screens and glass: if broken, the glass can cut.
- Respect the voltage stated on the product page: the wrong power supply destroys the module.
- Contains small parts: not suitable for children under 3.
Origin, responsible person and contact
- Product and packaging as supplied by the manufacturer: markings may be in Chinese or English. The product's characteristics are described on this page.
- Use this product only for the purpose described on this page and follow the instructions below.
- Person responsible for placing this product on the EU market: JMR-Service (Fun-Esports). See our Terms of Sale for full contact details.
- A safety problem (overheating, burning smell, broken part)? Stop using the product and write to us at contact@fun-esports.com.
- Warranty, returns and withdrawal: see our Warranty and returns page.
Frequently Asked Questions
🔧 Do I need to solder to install this kit?
Installation is done with a screwdriver. Depending on the fan's connector, a cable adapter may be needed: check it before starting, or write to us.
🎮 Which Dreamcast models is it compatible with?
Dreamcast consoles from all regions, generally excepting the very first VA0 motherboards, whose fan is mounted on a metal heatsink.
🌀 Can I use a 12 V fan?
No. The Dreamcast powers its fan at 5 V: a 12 V model would spin too slowly or not at all.
📦 What is in the box?
Depending on the version: bracket and 5 V fan, bracket only, or 5 V fan only.
🧰 What tools do I need?
A Phillips screwdriver to open the console, and something to clean away the accumulated dust while the console is open.
⏱️ How long does installation take?
Allow half an hour to an hour for a first time, cleaning included.
🚚 What are the delivery times?
Delivery in 10 to 18 days, dispatched within 3 to 5 days.
🛡️ What guarantee applies?
2-year legal guarantee of conformity. 14-day returns. Customer service replies within 1 business day.
